Honda Outboard BF10

Category:

Description



*Honda is offering a 5 + 2 = 7 years domestic warranty on Eligible Purchases. The additional two years are based on the following conditions: The Outboard must either be sold and set up by an authorised Honda Marine dealer or be sold by an authorised sales agent for Honda Marine Australia and set up in accordance with the instructions in the Product Registration & Set-up Guide (if applicable), in conjunction with the Owner’s Manual. The Outboard must be serviced for the entire warranty period by an authorised Honda Marine dealer, in line with the recommended service schedule, using genuine Honda parts, oils and lubricants. See full warranty terms and conditions at https://marine.honda.com.au/owners/warranty.



The BF10 has been designed for boaters who want dependable performance in a compact engine and is perfectly suited for use with sailboats, inflatables and small aluminium boats. Offering very low fuel consumption and maintenance costs, while still delivering optimum performance and durability. At 222cc, it has the largest displacement in its class, and Honda’s Power Thrust Propeller – a four-blade propeller design (optional) – creates significantly more thrust in both forward and reverse gears. If you want dependable performance in a portable package, then the BF10 is the engine for you. At just 42kg, the BF10 is one of the lightest four-stroke engines in its class. This allows convenient transport and easy mounting to any hull. A helpful, foldaway carry handle is situated at the exact top/bottom balance point of the engine, so that the engine carries easily in a level position.

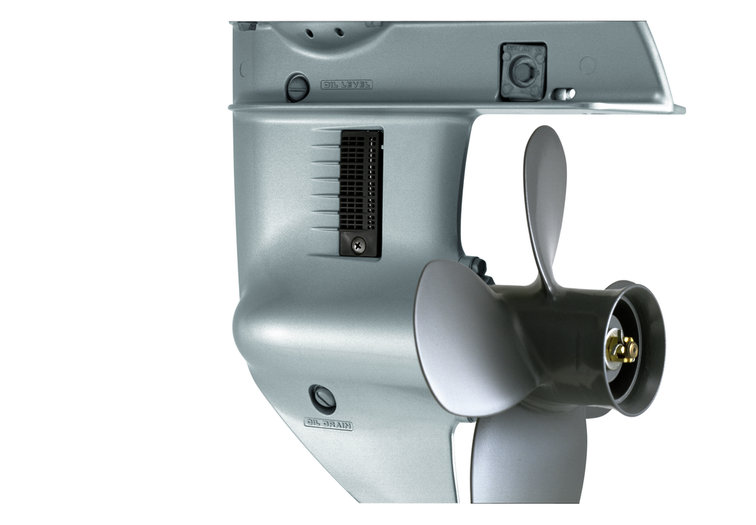

Reverse exhaust relief

  • Exhaust gases are diverted away from the propeller while in reverse, allowing the propeller to run in clean water.

Reverse exhaust relief

Power tilt and gas assist tilt

  • The BF10 is equipped with Power Tilt and Gas Assist Tilt variations – perfect for effortless engine tilt operations and shallow-water running. Cruising is improved and more comfortable with Honda’s unique pendulum-motion mounting system. This system is specially designed to reduce vibration and maximise user comfort. A convenient Forward Mount Shift Lever allows fingertip shifting, while a Twist Grip Throttle and Tensioner ensures superior throttle friction, minimising driver fatigue.

Power tilt and gas assist tilt

Corrosion protection system

  • Every Honda engine undergoes an exclusive four-stage coating process for protection against harsh conditions like ultraviolet rays and saltwater exposure. A double-sealed anodising treatment is applied to the aluminium alloy base, followed by the epoxy primer undercoat, acrylic aqua marine silver paint, and finally, the acrylic resin topcoat.

Corrosion protection system

Easy one hand starting

  • Working together, a built-in decompression release and Digital CDI system set the ignition timing during start-up. Just 60% of the normal effort is required to pull-start the engine by hand! Electric-start models offer Auto Start Enrichment which automatically adjusts the air/fuel mixture for an even quicker, easy starting and warm-up operation. The PGM Ignition (where a reliable microprocessor accurately controls ignition timing during start-up and across the entire rpm range) provides optimum overall operation.  There is also a Power Thrust Option Available too.

Easy one hand starting

Honda exclusive

  • As with all Honda outboards, Honda’a portable range boasts all the benefits of Honda’s advanced four-stroke technology, like unparalleled easy starting, quiet operation and low emissions. The range offers the lowest in fuel consumption and maintenance costs, in addition to the performance and durability for which Honda is renowned

Honda exclusive

Fresh water flushing

  • The Fresh Water Flush point flushes debris and saltwater out of the engine, extending the life of the outboard.

Fresh water flushing

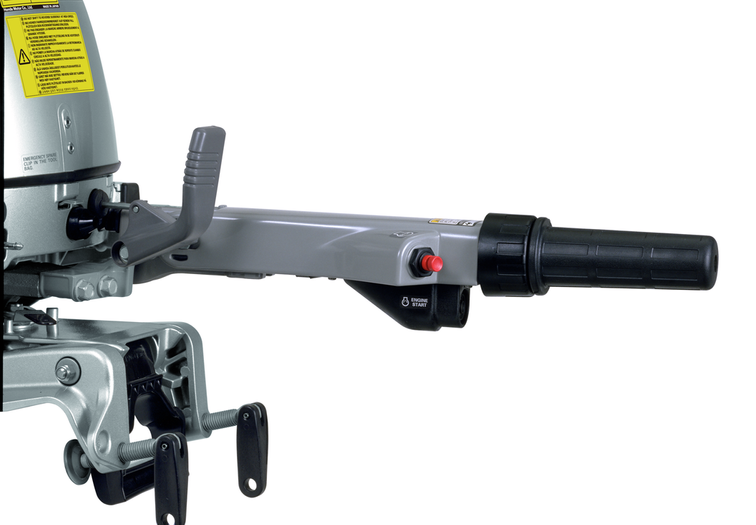

Longer tiller handle and up-front tiller controls

  • The BF10 has a convenient longer tiller handle for increased control and reduced steering effort. The extended handle is made of a new lightweight composite for increased durability and weight reduction. The convenient Forward Mount Shift Lever allows fingertip shifting. Twist Grip Throttle and Tensioner allows for superior throttle friction control, minimising driver fatigue.

Longer tiller handle and up-front tiller controls

Specifications

Features
Power
Charging Output 12-Amp (electric) / 6-Amp (manual)
Propulsion
Propeller 4-blade aluminium
Safety
Trim Limit Switch No
Oil Pressure Alert Yes
Temperature Alert Yes
Rev-Limiter Yes
Speedometer Pickup No
Trim & Tilt
Trim & Tilt Manual
Trim Range 5-stage 4°, 8°, 12°,16°, 20°
Tilt Range 72°
Dimensions, Weights And Capacities
Weights
Dry Weight 42kg
Dimensions
Height (mm) 1,235
Length (mm) 610
Width (mm) 345mm
Warranty
Warranty
Domestic Warranty 7 Year*
Commercial Warranty 3 Year*
Performance
Performance
Rated Power 10HP @ 5,500 RPM
Powertrain
Engine
Engine Type 4-stroke OHC
Starting System Recoil/Electric
Exhaust Through prop
Gear Ratio 2.33:1
Displacement 222cc
Cylinders 2
Valves 4
Bore & Stroke (mm) 58 x 42
Full Throttle Range (rpm) 5,000-6,000
Cooling System Water cooled
Carburation Carburetor
Ignition System PGM-IG
