Honda Outboard BF2.3

Category:

Description



*Honda is offering a 5 + 2 = 7 years domestic warranty on Eligible Purchases. The additional two years are based on the following conditions: The Outboard must either be sold and set up by an authorised Honda Marine dealer or be sold by an authorised sales agent for Honda Marine Australia and set up in accordance with the instructions in the Product Registration & Set-up Guide (if applicable), in conjunction with the Owner’s Manual. The Outboard must be serviced for the entire warranty period by an authorised Honda Marine dealer, in line with the recommended service schedule, using genuine Honda parts, oils and lubricants. See full warranty terms and conditions at https://marine.honda.com.au/owners/warranty.

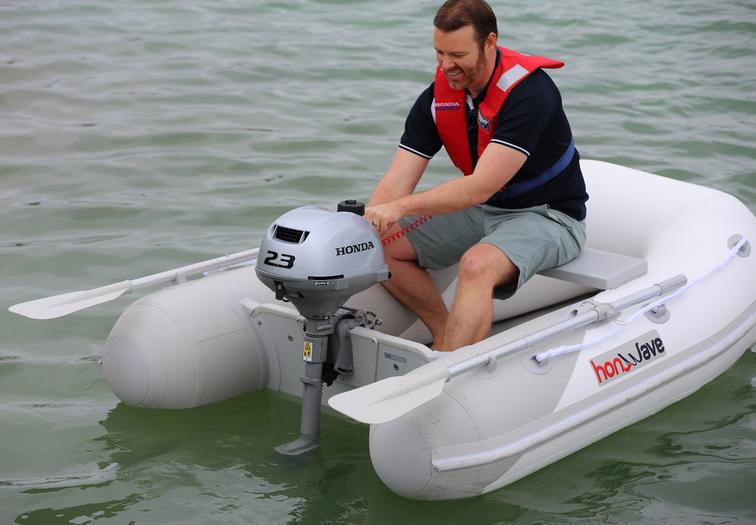

Reliable and quiet, the ergonomic carry handle of the lightweight BF2.3 allows the Honda experience to be enjoyed anywhere, anytime! The ease of transporting the BF2.3 makes it perfect for inflatable boats like the Honwave, as well as small tenders and canoes.

      Ultimate portable power

  • Not only does the BF2.3 pack enough punch to push a boat out to sea, it’s light enough to be carried back to the car. Thanks to the ergonomic carry handle fitted to each engine, the BF2.3 can be taken virtually anywhere. Despite the engine’s size, the BF2.3 boasts all the benefits of Honda’s advanced four-stroke technology, its lightest 2.3hp four-stroke available – even lighter than most two-stroke outboards.

    Low maintenance

    • Thanks to the transistor ignition, you’ll get maintenance-free, high-energy output for quick and easy starts with the BF2.3. The forced air-cooled engine also means there is no water pump to worry about being plugged with weeds or damaged by sand. The BF2.3’s Shallow Water Drive also allows you to run in shallow water and greatly reduces the risk of engine damage.

    Integral fuel tank

    • A 1L integral fuel tank facilitates easy removal and portability as one unit. The vent is able to be closed during transport or for extended storage periods. The engine can run for up to 55 minutes at full throttle on a tank of fuel.

      Integral fuel tank

    Centrifugal clutch

    • The Honda BF2.3 comes standard with a centrifugal clutch. As a result, the engine is able to maintain a smooth idle and automatically engage the prop above idle speed when the throttle is advanced. It’s like having a neutral position. The engine is able to maintain a smooth idle and then upon advancing the throttle it automatically engages the propeller above idle speed.

    Centrifugal clutch

    360 rotation and optimum maneuverability

    • Get in and out of tight spots with ease, or go in any direction on the compass, with this extremely maneuverable engine. The reverse thrust allows you to get to where you want to go efficiently. A twist grip throttle also allows for precise throttle control, and the throttle tensioner minimises driver fatigue.

    360 rotation and optimum maneuverability

    3 Year Commercial Warranty

    3 Year Commercial Warranty



    Honda outboards are the toughest and most reliable on the Australian market and are backed by an industry leading 3-Year* Commercial Warranty.

    7 Year Domestic Warranty

    7 Year Domestic Warranty



    Honda offers an unmatched 7-Year* Domestic Warranty with the added confidence of knowing that coverage is the same on the last day as it is on the first – something no other outboard manufacturer offers.

Specifications

Features
Power
Charging Output n/a
Propulsion
Propeller 3-blade plastic
Safety
Trim Limit Switch No
Oil Pressure Alert No
Temperature Alert No
Rev-Limiter No
Speedometer Pickup No
Trim & Tilt
Trim & Tilt Manual
Trim Range 4-stage 5° – 10° – 15° – 20°
Tilt Range 75°
Dimensions, Weights And Capacities
Weights
Dry Weight 13.6kg
Dimensions
Height (mm) 1,109
Length (mm) 412
Width (mm) 285
Warranty
Warranty
Domestic Warranty 7 Year*
Commercial Warranty 3 Year*
Performance
Performance
Rated Power 2.3HP @ 5,500 RPM
Powertrain
Engine
Engine Type 4-stroke OHV
Starting System Recoil
Exhaust Under water, above propeller
Gear Ratio 2.42:1
Displacement 57cc
Cylinders 1
Valves 2
Bore & Stroke (mm) 45 x 36
Full Throttle Range (rpm) 5,000-6,000
Cooling System Forced air
Carburation Carburetor
Ignition System Transistorised Magneto
