Honda Outboard BF80
Description

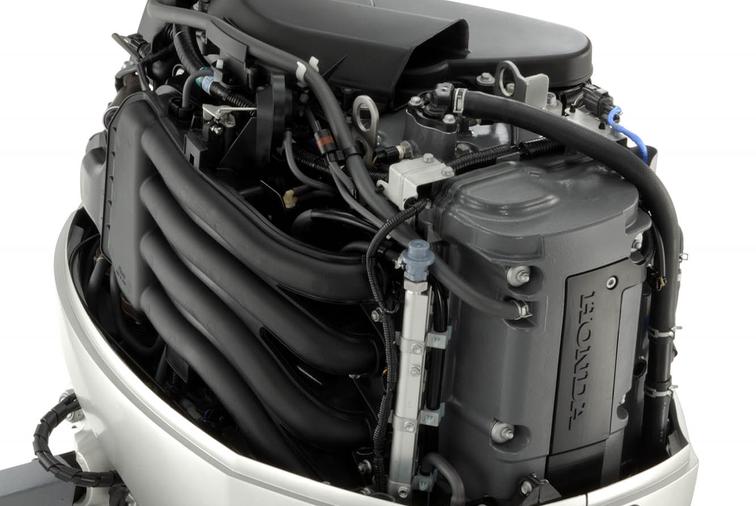

The BF80 offers Honda’s technological advancements and premium engineering into one smooth, streamline model. With an all-aluminium alloy block, the BF80 is a very lightweight and powerful package.
Boosted Low Speed Torque (BLAST)
-
Honda’s revolutionary BLAST™ technology provides strong hole shot performance, getting the hull on the plane quicker. This air/fuel ratio and ignition-timing technology boosts engine torque at low RPM under rapid acceleration conditions. It’s NMEA compatible, meaning all engine data including speed, fuel consumption, cruising distance, etc can be displayed on the GPS screen

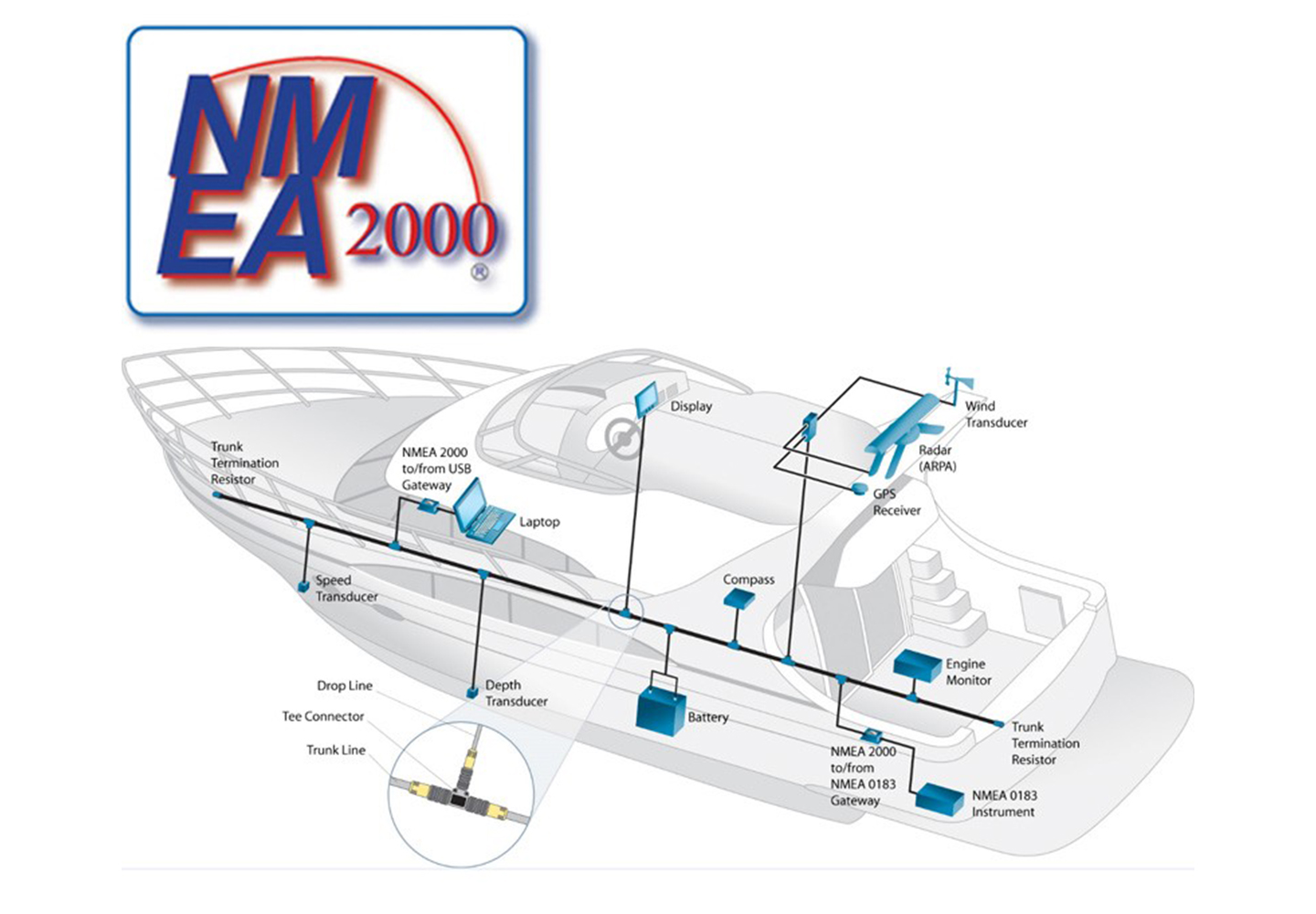

NMEA2000 Compliance
-
All Honda outboards from the BF40 to BF250 are NMEA2000 compliant, allowing simplified connectivity with NMEA2000 electronic equipment such as sonars/fish finders, chart plotters and other devices via CANbus network technology.
Best in class charging
-
The BF80 has the best in class charging performance with a 44-amp alternator. This means your outboard is now able to charge the battery faster and power more accessories, so that you can now run that little bit of extra tech on the boat to help find the perfect catch.
Programmed Fuel Injection (PGM-FI)
-
Honda’s renowned Programmed Fuel Injection is controlled by an advanced Engine Control Unit (ECU). Engine sensors precisely control the supply of fuel to the engine, providing easy starting, instantaneous throttle response and superior fuel economy. (BF40– BF250)
v
Lean Burn Control
-
Honda’s Lean Burn Control technology, ECOmo, permits combustion to operate on a leaner air/fuel ratio. Sensors precisely measure the air/fuel mixture, ensuring best fuel economy in cruising mode. (BF40 – BF250).
Trolling control
-
Trolling Control is available from BF40 – BF150 & BF200-250 (DBW only). Available on selected Honda outboards, engine speed can be controlled in increments of 50RPM from idle speed to 1000RPM/1100RPM (model dependent). A switch required to activate this feature is available through your authorised Honda Marine dealer as an optional accessory. (BF40 – BF150)
Specifications
| Features | |
| Power | |
| Charging Output | 44-Amp |
| Propulsion | |
| Propeller | Optional |
| Safety | |
| Trim Limit Switch | No |
| Oil Pressure Alert | Yes |
| Temperature Alert | Yes |
| Rev-Limiter | Yes |
| Speedometer Pickup | Yes |
| Trim & Tilt | |
| Trim & Tilt | Power |
| Trim Range | -4° to +16° |
| Tilt Range | 68° |
| Dimensions, Weights And Capacities | |
| Weights | |
| Dry Weight | 165kg |
| Dimensions | |
| Height (mm) | 1,566 |
| Length (mm) | 746 |
| Width (mm) | 449 |
| Warranty | |
| Warranty | |
| Domestic Warranty | 7 Year* |
| Commercial Warranty | 3 Year* |
| Performance | |
| Performance | |
| Rated Power | 80HP @ 5,500 RPM |
| Powertrain | |
| Engine | |
| Engine Type | 4-stroke SOHC |
| Starting System | Electric |
| Exhaust | Through prop |
| Gear Ratio | 2.33:1 |
| Displacement | 1496cc |
| Cylinders | 4 |
| Valves | 16 |
| Bore & Stroke (mm) | 73 x 89 |
| Full Throttle Range (rpm) | 5,000 – 6,000 |
| Cooling System | Water Cooled |
| Carburation | Fuel Injection |
| Ignition System | Transistorised battery ignition |
